J-SQ*B Kick-down,pilot operated,balanced piston sequence valve
MODEL
J-SQBB
J-SQDB
J-SQFB
J-SQHB
J-SQJB
Attachment

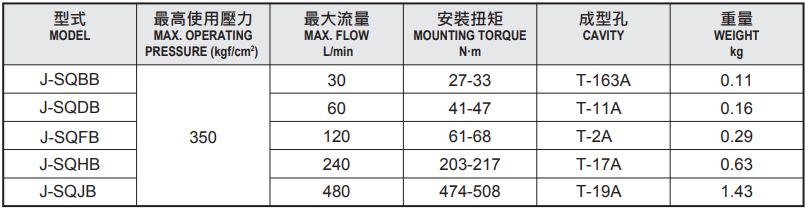

Specification
How to Order
A
SERIES NUMBER
B
VALVE SIZE
SQBB:
30 L/min
SQDB:
60 L/min
SQFB :
120 L/min
SQHB:
240 L/min
SQJB:
480 L/min
C
PRESSURE ADJUSTING RANGE
A:
7-210 kgf/cm²
B:
3.5-105 kgf/cm²
C:
10.5-420 kgf/cm²
D:
1.7-55 kgf/cm²
E:
1.7-28 kgf/cm²
W:
10.5-315 kgf/cm²
D
CONTROL
L:
STANDARD SCREW ADJUSTMENT
K:
HANDKNOB
※ J-SQBB ONLY SELECT L:
